Rail WS火车刹车橡胶管

火车刹车橡胶管
质量标准: Hose: Specifica tecnica Trenitalia n° 373407. Rubber: UNI CEI 11170-1-2-3, NF F16-101, EN ISO 11925-2, DIN 5510-2
应用范围: 设计作为火车空气制动系统的连接软管，特别耐火和低毒低烟气排放
软管结构
内层: 黑色，光滑的合成橡胶
加强层: 高强力合成线绳
外层: 黑色， 光滑(表面布纹)，抗老化、耐臭氧和耐油的合成橡胶
商标: 橡胶管表面连续螺旋压印条纹“IVG/class.../年份...”
可选择项: 1.根据BS 3682:94标准生产；2.接头；3.不同口径

Rail brake hose
Standards: Hose: Specifica tecnica Trenitalia n° 373407. Rubber: UNI CEI 11170-1-2-3, NF F16-101, EN ISO 11925-2, DIN 5510-2.
Application: softwall hose designed as a flexible connection in air brake systems on rail carriages and locomotives. It is fire resistant with low toxicity and low smoke emission. Coils: supplied usually in application lengths with tapered ends.

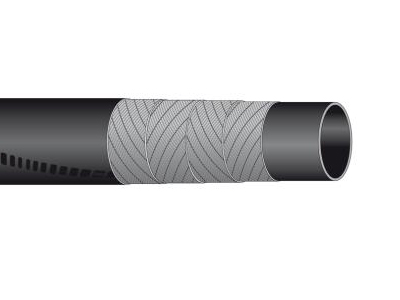

Construction
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), long lasting rubber, weathering, ozone, and oil resistant.
Branding: embossed stripe “IVG/class.../quarter and year of production” and coloured transfer stripe.
Also available upon request: 1.Different diameters. 2.In accordance to the standard BS 3682:94, part 1. 3.Rail Couplings.
