Rail UIC Cold铁路制动软管

铁路制动软管
质量标准: UIC-830-1-85, 外胶根据 DIN 5510-2.橡胶保护层根据 NF F 16-101 等级 F3 I2, grid 5 and 6
应用范围: 用于连接机车与车辆之间制动系统中，可根据要求绕成锥形与圆形
温度范围: 最低可适应 -40℃
软管结构
内层: 黑色，光滑，合成橡胶
加强层: 高强度合成线
外层: 黑色，平滑(包装完成)、风化、臭氧、耐油合成橡胶
商标: 压花标签“IVG /年的生产/批/ uic - 830 - 1”
可选择项: 1.不同口径；2.提供接头

Rail brake hose
Standards: UIC-830-1-85. EN 15807:11. Cover according to DIN 5510-2 class S4 - SR2 - ST2 - FED<0,1; NF F 16-101 class F3 I2, grid 5 and 6.
Application: softwall hose designed as a flexible connection in air brake systems on rail carriages and locomotives. Suitable for temperatures up to -40°C. Coils: supplied usually in application lengths with tapered ends.
Temperature: suitable for temperatures up to -40°C.

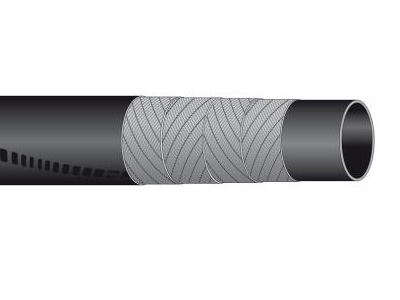

Construction
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering, ozone, and oil resistant.
Branding: embossed label “IVG/year of production/batch/UIC-830-1”.
Also available upon request: 1.Different diameters. 2.Rail couplings.
