Rail WS/Firewall制动管保护管

制动管保护管
质量标准: UNI CEI 11170-1-2-3, NF F16-101, EN ISO 11925 - 2, DIN 5510 -2
应用范围: 软壁软管，用于连接车头与车辆之间制动系统中.外胶覆盖耐热玻璃纤维具有耐火性和低毒性、低烟排放。保证了耐燃性至少15分钟. (TGM-VA KU 20587-1-Austria). 可根据要求绕成锥形与圆形。—专利审核中
软管结构
内层: 黑色,光滑,耐高温的合成橡胶
加强层: 高强度合成线和耐热玻璃纤维
外层: 黑色,平滑(包装完成),稳定的物理性能、耐老化、臭氧、耐油和火
商标: 连续浮雕条纹 “TGM-VA KU 20587-1/FIREPROTECT/年/PAT PENDING/IVG”
可选择项: 1.接头；2.不同口径

Protected rail brake hose
Standards: Rubber: UNI CEI 11170-1-2-3, NF F16-101, EN ISO 11925-2, DIN 5510-2.
Application: softwall hose designed as a flexible connection in air brake systems in rail carriages and locomotive systems. Fire resistance with low toxicity and low smoke emission is guaranteed by fiber glass protections embedded in the hose wall. Flame resistant at least 15 minutes. (TGM-VA KU 20587-1-Austria). Coils: supplied usually in application lengths with tapered ends.- PATENT PENDING -

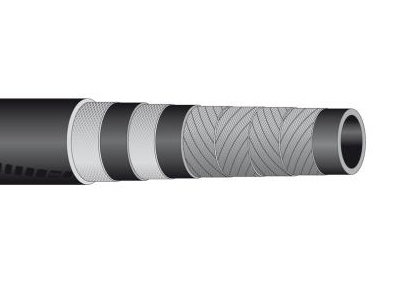

Construction
Tube: black, smooth, fire resistant synthetic rubber.
Reinforcement: high strength synthetic cord and heat resistant fiber glass plies.
Cover: black, smooth (wrapped finish), long lasting rubber, weathering, ozone, oils and fire resistant.
Branding: continuous embossed stripe “TGM-VA KU 20587-1/FIRE PROTECT/YEAR/PAT PENDING/IVG”.
Also available upon request: 1.Different diameters. 2.Rail couplings.
