Rail UNI 4882受电弓管

受电弓管
质量标准: Hose: UNI 4882. Rubber: UNI CEI 11170-1-2-3, NF F16-101, EN ISO 11925-2
应用范围: 软壁管，高抗耐磨表面。应用与铁路和轨道车辆的电气张力固定式管道，它是专为受电弓气动控制，接触器，以及保护和控制气动设备专门设计的
温度范围: -30℃至+90℃
软管结构
内层: 黑色, 光滑, 耐油合成橡胶
加强层: 高强力合成线绳
外层: 黑色，光滑（表面包覆），合成橡胶，耐腐蚀，耐氧化和耐油
商标: 橡胶管表面连续的白色条纹 “IVG/生产年月/UNI 4882”
可选择项: 1.不同口径

Pantographs hose
Standards: Hose: UNI 4882. Rubber: UNI CEI 11170-1-2-3, NF F16-101, EN ISO 11925-2.
Application: softwall hose with a high grade of resistance to surface electrical tension for stationary pneumatic piping of rail and tramway vehicles. It was designed for the pneumatic control of pantographs, contactors, and pneumatic equipment for protection and control.
Temperature: from -30°C (-22°F) to +90°C(+194°F).

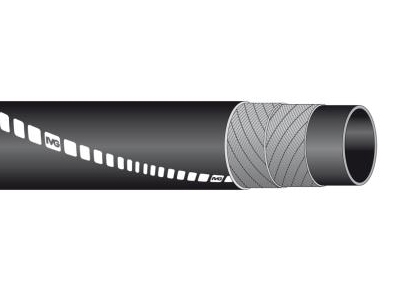

Construction
Tube: black, smooth, oil resistant, synthetic rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), synthetic rubber, resistant to weathering, ozone and oils.
Branding: continuous white stripe “IVG/quarter and year of production/ UNI 4882”.
Also available upon request: 1.Different diameters.
