液压油排吸管
质量标准: SAE J517 type SAE 100 R4
应用范围: 硬壁软管，适用于液压系统中油料(除酯外)的排吸
温度范围: -40℃至+100℃
软管结构
内层: 黑色，光滑，耐油合成橡胶
加强层: 高强力合成线绳和内置螺旋钢丝
外层: 黑色，光滑，耐磨损抗老化的合成橡胶
商标: 橡胶管表面连续螺旋印刷红色条纹“IVG...OIL...”
可选择项: 1. 不同尺寸直径

Hydraulic oil suction and delivery
hose
Standards: SAE J517, type SAE 100 R4 for the rubber compounds.
Application: hardwall hose used for the suction and delivery of oil
(except ester base) in hydraulic systems.
Temperature: from -40°C (-40°F) to +100°C (+212°F).

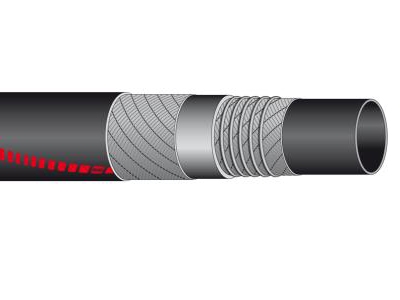

Construction
Tube: black, smooth, synthetic rubber, oil resistant.
Reinforcement: high strength synthetic cord plus steel helix wire.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering
resistant.
Branding: continuous red stripe “IVG OIL (family logo)...”.
Also available upon request: 1.Different diameters.
