Offshore PL Grout液体泥浆喷射管

液体泥浆喷射管
应用范围: 钢丝螺旋软管，在钻井平台外套结构使用，专门输送快凝液体泥浆，是加固钻井平台不可或缺的软管；可耐外部温度高达80℃
温度范围: -10℃至+42℃
软管结构
内层: 黑色，光滑，SBR合成橡胶
加强层: 多层螺旋钢丝结构，夹有纵向织物以承载拉伸负荷
外层: 黄色，光滑（表面布纹），耐热，耐海水腐蚀，抗老化的EPDM合成橡胶
商标: 橡胶管表面连续螺旋印刷红色条纹 “IVG Offshore ...”

Liquid mud discharge hose
Application: steel cord hose to be used on the platform jacket structure to convey quick setting liquid mud, necessary for the platform consolidation. Resistance to the external temperature max. 80°C (176°F).
Temperature: from -10°C (+14°F) to +42°C (+108°F)

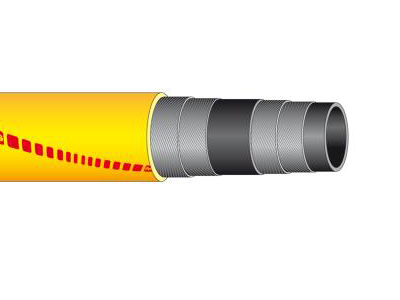

Construction
Tube: black, smooth, SBR rubber.
Reinforcement: plies of steel wire cord plus a longitudinal textile insert to guarantee the resistance to tensile loading.
Cover: yellow, smooth (wrapped finish) EPDM rubber, weathering, ozone, and sea-water resistant.
Branding: continuous red stripe “IVG Offshore (family logo)...”.
