Cable IVG-GUARDIAN® Electro

Cable cooling hose
Standards: rubber cover flame retardant according to ASTM C-542. Tolerances on I.D. accorrding to UNI EN ISO 1307/1997. Tolerances on wall thicknes from 5,1 mm to 7 mm: +/- 0,7mm - from 7,1 mm to 10 mm: +/- 0,8 mm.
Application: softwall hose used as sleeves for cooling electrical cables.
Elongation percentage: +-2% with hose at working pressure.
- BENDING RADIUS AT THE PRESSURE OF 1 BAR -
Temperature: from -40°C to +90°C, up to +110°C shortly.

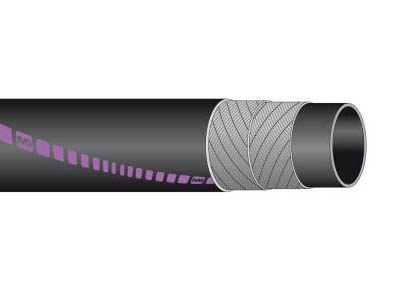

Construction
Tube: black, smooth, insulating EPDM rubber, suitable to convey hot water, process water, corrosion inhibitors and water mixed anti-freeze agents.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), insulating CR rubber, resistant to weather, ozone, radiant heat electric arc furnaces process, self-extinguishing according to ASTM C-542.
Electrical Resistance: R>1x108 Ω/m. Breakdown voltage > 6kV/mm.
Also available upon request: 1.Different diameters.
