Steam Vapofer 210°C 外胶耐油蒸汽管

210°C 外胶耐油蒸汽管
质量标准: EN ISO 6134/05 2 类 B级(Ω)
应用范围: 钢丝加强层蒸气管，用于输送最大工作压力为18 bar 的饱 和蒸汽。具有耐油外胶层。用于化工，石化以及一般工业应用。不建议用于蒸汽清洗机。该管可在18 bar 工作压力时短时间耐 230°C 的超热蒸汽。注意：用于超热蒸汽后会缩短管子使用寿命。为延长寿命请用后将管内的水排净
温度范围: -40°C（-40°F）到 +210°C（+410°F）
软管结构
内层: 黑色，光滑，EPDM 橡胶，耐饱和蒸汽
加强层: 钢线加强层
外层: 黑色，光滑( 表面布纹)，合成橡胶，表面采用针孔技术，极好的耐高温，耐气候，耐老化，耐油
商标: 连续凸起标记“IVG – EN ISO 6134:2005 – 2B –STEAM – 18 BAR - 210°C – 内径 – (Ω)– 生产季度和年份”
可选择项: 1.Vapofer/CSM，红色hypalon® 外层，符合NFT 47263 cat. II type 3 标准 2. 符合BS 5342 标准 3. 不同口径

Steam hose for 210°C
Standards: EN ISO 6134/05 type 2 class B (Ω).
Application: steel cord hose for saturated steam at a maximum working pressure 18 bar; it has an oil resistant cover. Used in the chemical industry, petrochemical and industrial applications in general. Not recommended for steam cleaner. The hose can be used for peaks of superheated steam at 230°C and at 18 bar. Attention: the use of superheated steam reduces the hose life. For longer life drain after use.
Temperature: from -40°C (-40°F) to +210°C (+410°F).

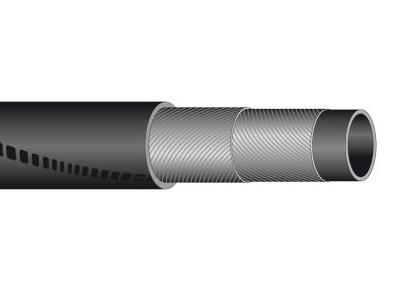

Construction
Tube: black, smooth, EPDM rubber, resistant to saturated steam.
Reinforcement: inserts of steel wire.
Cover: black, pin pricked, smooth (wrapped finish), synthetc rubber with excellent resistance to high temperatures, weathering, ageing and oils.
Branding: continuous embossed marking “IVG - EN ISO 6134:2005 -
2B - STEAM - 18 Bar - 210°C - D.I. - Ω - quarter and year of manufacture”.
Also available upon request: 1.Vapofer/CSM, with red hypalon® cover in accordance to the standard NFT 47263 cat. II type 3 2.According to the standard BS 5342 3.Different diameters.
