Steam Steam Victoria LL210°C 蒸汽管

210°C 蒸汽管
应用范围: 硬壁管，钢丝加强层蒸气管，用于输送最大工作压力 为18 bar（261psi）的饱和蒸汽。用于化工，石化以及一般工业应 用。不建议用于蒸汽清洗机。该管可在18 bar工作压力时短时间 耐230°C的超热蒸汽。注意：用于超热蒸汽后会缩短管子使用寿 命。为延长寿命请用后将管内的水排净
温度范围: -40°C（-40°F）到 +210°C（+410°F）
软管结构
内层: 黑色，光滑，EPDM 橡胶，耐饱和蒸汽
加强层: 钢线加强层及螺旋钢丝加强
外层: 黑色，光滑( 表面布纹)，EPDM 橡胶，极好的耐高温、耐 气候和耐老化性，表面采用针孔技术，能防止管子内部脱层引起 爆裂
商标: 连续凸起标记“IVG – Steam Victoria /LL …”
可选择项: 1. 不同口径

Steam hose for 210°C
Application: hardwall hose with steel cord reinforcement for saturated steam at a maximum working pressure 18 bar, used in the chemical industry, petrochemical and industrial applications in general, where a particular bending radius is necessary. Not recommended for steam cleaner. The hose can be used for peaks of superheated steam at 230°C and at 18 bar. Attention: the use of superheated steam reduces the hose life. For longer life drain after use.
Temperature: from -40°C (-40°F) to +210°C (+410°F).

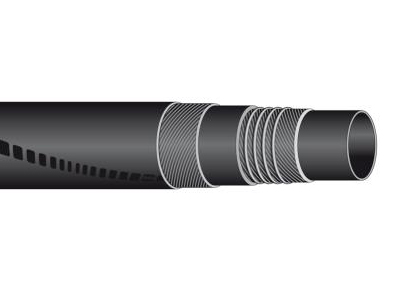

Construction
Tube: black, smooth, EPDM rubber, resistant to saturated steam.
Reinforcement: inserts of steel wire and helix wire.
Cover: black, pin pricked, smooth (wrapped finish), EPDM rubber with excellent resistance to high temperatures, weathering, abrasion, and ageing.
Branding: continuous embossed marking “IVG Steam Victoria/LL...”.
Also available upon request: 1.Different diameters.
