Auto Silcar LL冷却系统硅胶管

冷却系统硅胶管
质量标准: 符合ASTM C 542 防火标准
应用范围: 硬壁硅胶管，用于传输热空气，热水和防冻液，具有很 好的耐油性能，用于需要耐高温的汽车和工业机械引擎的冷却 系统（水和抗凝剂温度范围：-40°C / -40°F 到 +100°C / +212°F）
温度范围: -50°C（-58°F）到 +180°C（+356°F）, 最高温度可 达+200°C

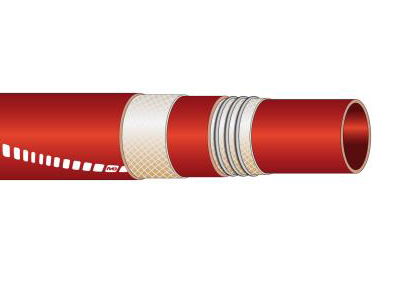

软管结构
内层: 黑色，光滑，硅胶
加强层: 高强度合成线绳和螺旋环绕钢丝
外层: 红色，光滑，硅橡胶，耐火，符合ASTM C 542 标准
商标: 连续白色条状标记“IVG Auto ( 公司商标)…”
可选择项: 1. 不同口径 2. 硬质波浪形外管 3. 蓝色

Suction and delivery hose for cooling systems
Standards: flame retardant compunds according to ASTM C-542.
Application: hardwall suction and delivery silicon hose designed for conveying hot air or fluids like water mixed with anti-freeze liquids, with good oil resistance. Suitable to be used in cooling systems of cars and industrial vehicle engines, where high temperature resistance is required.
(Range temperature for water and anti-freeze liquids: from -40°C/-40°F to +100°C/212°F).
Temperature: from -50°C/-58°F +180°C/+356°F. Peaks up to +200°C

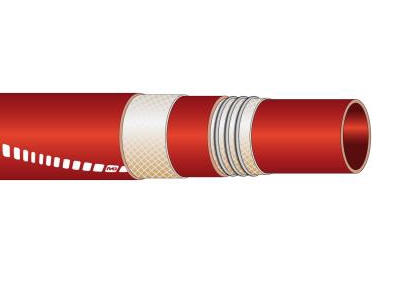

Construction
Tube: red, smooth, silicon.
Reinforcement: synthetic cord and helix wire.
Cover: red, smooth (wrapped finish), silicon rubber. Flame retardant according to ASTM C-542.
Branding: continuous white stripe “IVG Auto (family logo)...”.
Also available upon request: 1.Different diameters 2.Hardwall version with corrugated cover 3.Blue colour.
