产品详情与编号
序号 产品编号 名称 Packaging unit Weight Thread - M 售价 订购数量
  全部
全部
全部
全部
全部

1.0 233859 Beam clamp MI-SGC M12 Packaging unit 16 pc Weight 0.36 kg Thread - M M12 ¥82.70
注:本公司对上述参数保有最终解释权,如若变动,恕不通知。
MI-SGC M12 NEW MI-SGC M12 NEW Thread - M: M12 Weight: 0.36 kg Material composition: Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-6 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel Features & Applications Features For steel beams with flange thickness from 3 to 36 mm and angles of up to 15° Corrosion protection on the steel beam is not damaged by the beam clamp Equipped with a set of vibration-resistant washers Applications MI beam clamp for direct connection of MI girders to steel beams

Technical Data

IS_HNA_315_APC_fv600
Thread - M
M12
Weight
0.36 kg
Material composition
Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-6 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish
HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461
Tightening torque
84 Nm
Wrench size
19 mm

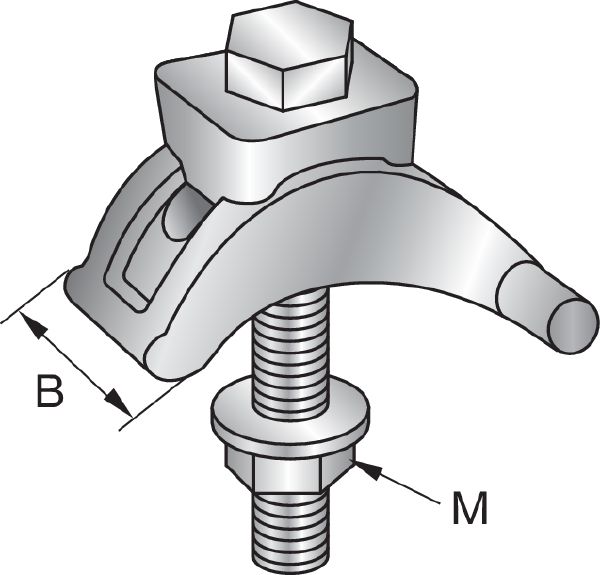

Width - B
30 mm
Additional product information
Beam clamps always to be used in pairs
