产品详情与编号
序号 产品编号 名称 Packaging unit Maximum load - F For use with 售价 订购数量
  全部
全部
全部
全部
全部

1.0 386530 Perforated band hanger MV-SI Packaging unit 50 pc Maximum load - F 600 N For use with Perforated band: max. band width 20 mm. max. band thickness 2.5 mm ¥8.80
注:本公司对上述参数保有最终解释权,如若变动,恕不通知。

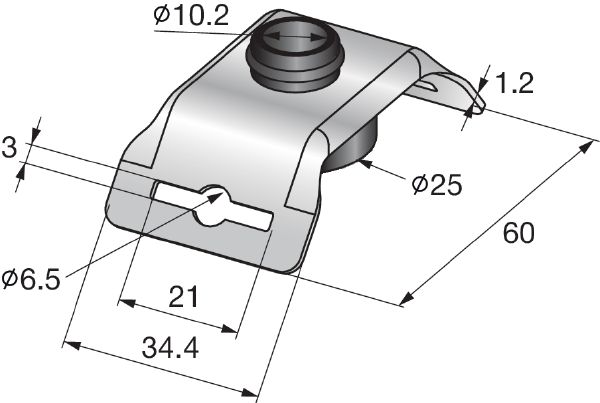

MV-SI NEW MV-SI NEW For use with: Perforated band: max. band width 20 mm, max. band thickness 2.5 mm Maximum load - F: 600 N Maximum tensile load - Fz: 0.6 kN Features & Applications Features Easy to use Fits all folded spiral-seam tube sizes Built-in acoustic insulation piece with through-hole and preassembled U-washer for M8/M10 threaded rods Height adjustment possible even after installation Insulation piece does not drop out during installation Applications For the installation of round air ducts to the ceiling

Technical Data

13811_APC_fv600
For use with
Perforated band: max. band width 20 mm, max. band thickness 2.5 mm
Maximum load - F
600 N
Maximum tensile load - Fz
0.6 kN
Weight
30 g
Noise reduction
18 dB (A)
Material composition
DD11 steel - DIN EN 10111 , EPDM
Surface finish
Sendzimir galvanized
Hardness insulation material
60° ±5° Shore A
Temperature resistance
-40 - 110 °C
