产品详情与编号
序号 产品编号 名称 Packaging unit Length Height 售价 订购数量
  全部
全部
全部
全部
全部

1.0 2119867 Girder MIQ-90 6m Packaging unit 6 m Length 6000 mm Height 90 mm ¥642.50
2.0 2119866 Girder MIQ-90 3m Packaging unit 3 m Length 3000 mm Height 90 mm ¥585.00
注:本公司对上述参数保有最终解释权,如若变动,恕不通知。

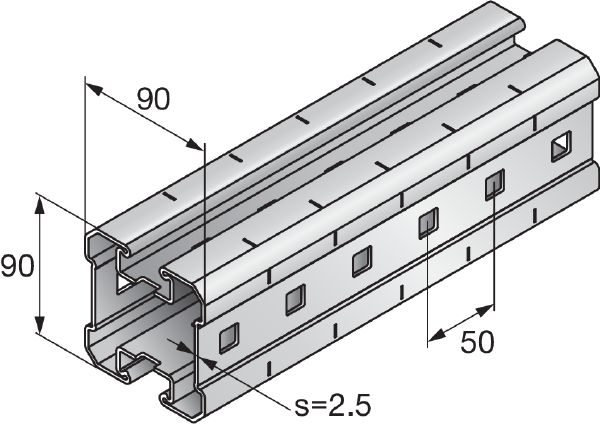

MIQ NEW MIQ NEW Height: 90 mm Material composition: S275JR - EN 10025 Surface finish: Hot-dip galvanized, 65 µm - ASTM A123 Features & Applications Features Effortless pipe connections directly on the girder Continuous mounting slot allows connectors to be fitted at any point along the girder Full compatibility with both MQ and MI channel systems Applications Provides an easy-to-install, adjustable, flexible solution for industrial and heavy commercial applications, eliminating the need for welding Modular system for supporting cable trays or pipes, also suitable for various other installation applications

Technical Data

IS_MIQ_0001_APC_fv600
Height
90 mm
Material composition
S275JR - EN 10025
Surface finish
Hot-dip galvanized, 65 µm - ASTM A123
Material thickness
2.5 mm
