产品详情与编号
序号 产品编号 名称 Packaging unit Weight MI girder type 售价 订购数量
  全部
全部
全部
全部
全部

1.0 233861 Beam clamp MI-DGC 120 Packaging unit 4 pc Weight 1.04 kg MI girder type 120 ¥252.50
2.0 233860 Beam clamp MI-DGC 90 Packaging unit 4 pc Weight 1.02 kg MI girder type 90 ¥242.50
注:本公司对上述参数保有最终解释权,如若变动,恕不通知。
MI-DGC NEW MI-DGC NEW Material composition: Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-6 - DIN EN 1562; U-bolt: Steel grade 8.8; Nut: Steel grade 8 Surface finish: HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461 Tightening torque: 84 Nm Features & Applications Features For steel beams with flange thicknesses from 3 to 36 mm and angles of up to 15° Corrosion protection on the steel beam is not damaged by the beam clamp Beam clamp is equipped with self-locking nuts Applications MI beam clamp for direct connection of MI girder to steel beam

Technical Data

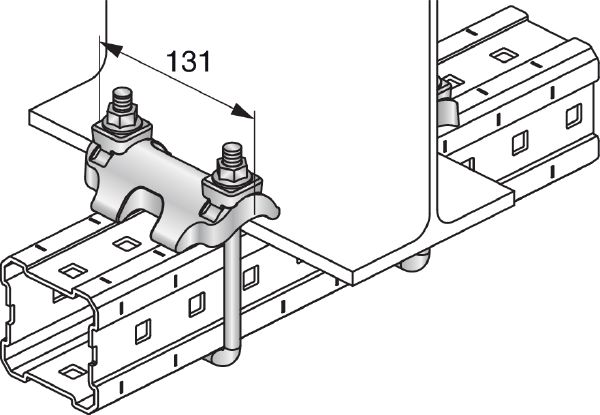

19902_APC_fv600

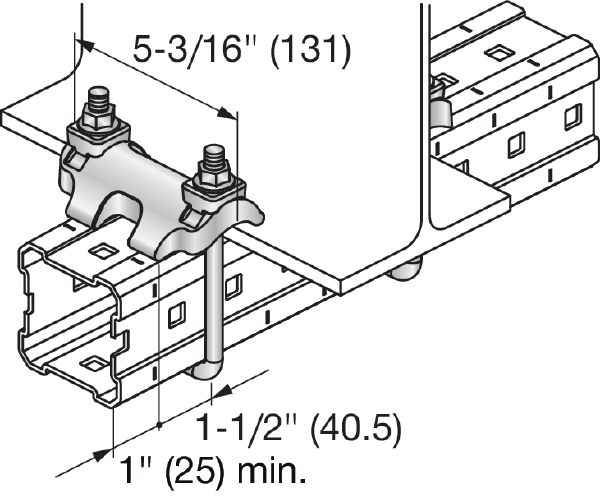

IS_HNA_411_APC_fv600
Material composition
Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-6 - DIN EN 1562; U-bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461
Tightening torque
84 Nm
Additional product information
Beam clamps always to be used in pairs
