MPN-GKM8/M10
  • 已选总价:¥0.00
  • 已选数量:0
所有费用均已包含增值税,不含运费。运费详情请参阅运费指导书。
产品详情与编号
序号 产品编号 名称 Packaging unit Thread - M Diameter - D 售价 订购数量
  全部
全部
全部
全部
全部

1.0 254913 Slide/clamp pipe ring MPN-GK 40 A Packaging unit 25 pc Thread - M M8. M10 Diameter - D 40 mm ¥21.70
2.0 254911 Slide/clamp pipe ring MPN-GK 32 A Packaging unit 25 pc Thread - M M8. M10 Diameter - D 32 mm ¥19.80
3.0 254905 Slide/clamp pipe ring MPN-GK 16 A Packaging unit 25 pc Thread - M M8. M10 Diameter - D 16 mm ¥16.20
4.0 254909 Slide/clamp pipe ring MPN-GK 25 A Packaging unit 25 pc Thread - M M8. M10 Diameter - D 25 mm ¥18.40
5.0 254907 Slide/clamp pipe ring MPN-GK 20 A Packaging unit 25 pc Thread - M M8. M10 Diameter - D 20 mm ¥16.80
6.0 254915 Slide/clamp pipe ring MPN-GK 50 A Packaging unit 25 pc Thread - M M8. M10 Diameter - D 50 mm ¥23.10
注:本公司对上述参数保有最终解释权,如若变动,恕不通知。
MPN-GK M8/M10 NEW MPN-GK M8/M10 NEW Thread - M: M8, M10 Maximum load - F: 750 N Material composition: DC01 - DIN EN 10130 Features & Applications Features Easy switching from sliding (low-friction) to clamping, holds by way of a clip Part of surface with special flock finish for low friction Clip provides visible indication of sliding hold Flock coating for low friction Clip provides visible indication of sliding support Applications Light-duty plastic pipes up to 63 mm Service water supply (cold and warm water) Heating (feed and return) Waste water For plastic pipes For approval or certificate information, please see individual items.

Technical Data

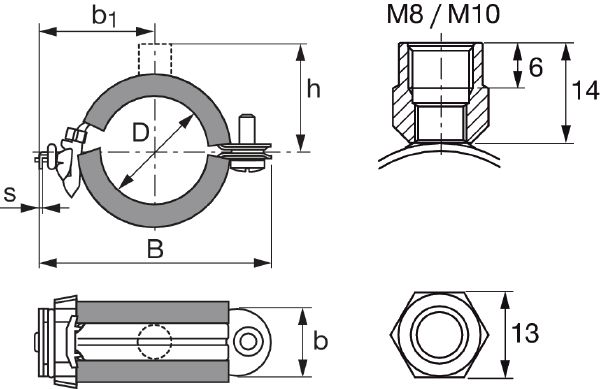

28522_A1_APC_fv600
Thread - M
M8, M10
Maximum load - F
750 N
Material composition
DC01 - DIN EN 10130
Temperature resistance
-50 - 110 °C
Surface finish
Galvanized
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Clamping screw
M6
Tightening torque
2 Nm
Cross section thickness - s
1 mm
Cross section width - b
20 mm
Noise reduction
17 dB (A)
Approvals
Fire class B2
