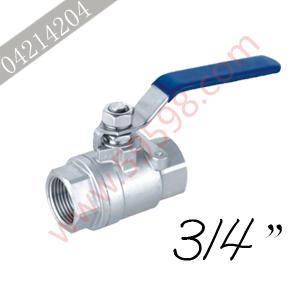

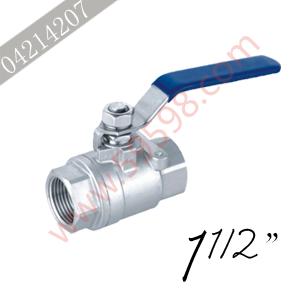

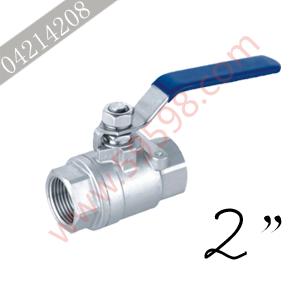

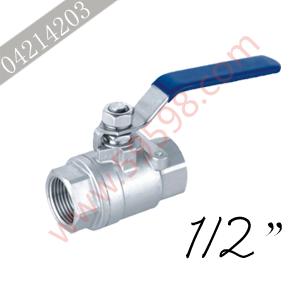

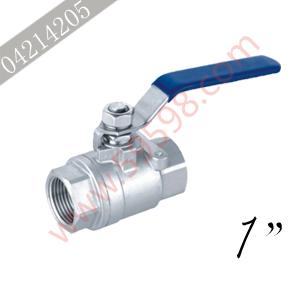

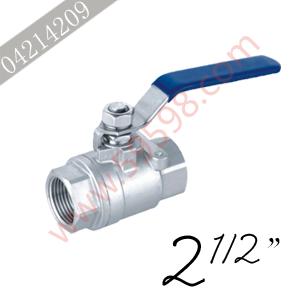

【单片式锻造球阀描述】

• 1、单片式锻造球阀的设计参照：ASME B16.34，MSS SP-110
• 2、单片式锻造球阀的温度：-29℃～180℃
• 3、单片式锻造球阀的介质：水、油、气及某些腐蚀性液体
• 4、单片式锻造球阀的螺纹：BSP NPT 或其他客户指定有带锁装置可选择


• 1、Design standard: ASME B16.34，MSS SP-110
• 2、Working Temperature: -29℃～180℃
• 3、Working Medium: Water、oil、and some corrosive liquid
• 4、Pipe thread: BSP NPT or comply to customer request With lockable design for option

【单片式锻造球阀注解图】

【单片式锻造球阀的安装指南】

1. 请确保阀门在合适的工况中使用。
2. 阀门安装前，请确保清除流体中的杂质, 否则可能造面密封面损坏。
3. 阀门安装前，务必先清除产品及阀门端面上的防护包装物。
4. 阀门安装时，请确保螺纹部分生带合理使用量，否则可能造成阀门与管道连接处泄露。
5. 阀门安装完成后，请确保连接管道没有对阀门形成拉伸，否则会造成对阀门螺纹的损坏。
6. 阀门投入使用前，请对管道进行压力测试以确保所有的连接处无泄露。
7. 阀门使用期间，请确保阀门打开与关闭的扭矩不应超过30Nm。
8. 请定期检查维护阀门，以确保阀门正常工作。

1.Please make sure that the valve is used under proper condition.
2.Before assembling, ensure removing impurities from the fluid which might cause the damage of the sealing face.
3.Before assembling, ensure removing all the packing material on both body and valve ends.
4.During assembling, ensure proper use of tape, otherwise it might cause the leakage of connection.
5.After assembling, check and ensure no stretch on the valve formed by pipeline which might cause the damage of thread.
6.Before valve using, operate pressure test of connection to make sure no leakage.
7.During valve using, make sure the torque of switch not over 30Nm.
8.Please verify the valves periodically to ensure all the application and function work correctly.
