Chem Teflex omega特氟龙化学管

特氟龙化学管
质量标准: EN 12115:11. Tube USP Class VI and FDA tit.21 it.177.1550. 不含邻苯二甲酸盐
应用范围: FEP内胶硬壁软管（Teflon），适用于绝大多数化学物质的输送，具体请参照IVG化学物质表，最高温度可达150℃，符合CIP标准
温度范围: -40℃至+150℃
软管结构
内层: 清洁、光亮、特别光滑、食品级和耐高温的FEP材料（Teflon），具有化学耐受性，具体请参照IVG化学物质表，当输送温度高于50℃请与我方联系
加强层: 高强力合成线绳和钢丝螺旋
外层: 黑色、光滑（表面布纹）、耐化学品、耐磨、耐臭氧、抗老化导电的EPDM合成橡胶
商标: 橡胶管表面连续印刷白/蓝/绿条纹“IVG Chem ...”。按压根据EN 12115

Hose for chemicals and solvents, FEP tube
Standards: EN 12115:11. Tube USP Class VI and FDA tit.21 it.177.1550. Phthalates free.
Application: hardwall hose with FEP tube (polymer of tetrafluoroethylene and hexafluoropropylene), suitable to convey almost all chemical products, as found in the IVG chemical resistance chart. Designed to be sterilized at 150°C (+302°F) with standard CIP.
After consultation with the manufacturer, the end user is responsible for making sure that the lining of the hose or hose assemblies is suitable to handle the chemicals conveyed and the temperature utilized.
Temperature: -40°C(- 40°F) +150°C(+302°F) depending on medium.

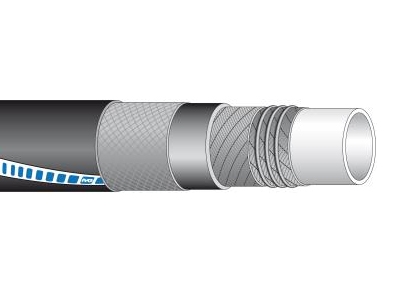

Construction
Tube: FEP clear, specular, particularly smooth, food quality and with exceptional thermal quality. Chemical resistance according to IVG chemical resistance chart. For temperature exceeding 50°C contact IVG.
Reinforcement: high strength synthetic cord, steel helix wire.
Cover: black, smooth (wrapped finish), conductive EPDM rubber, resistant to chemicals, abrasion, ozone and weathering.
Electrical Resistance: type Ω.
Branding: continuous white/blue/green stripe “IVG Chem (Family logo)...”. Embossed acc. to EN 12115.
