Chem Teflex特氟龙化学管

特氟龙化学管
质量标准: EN 12115:11.（內胶符合标准：USP Class VI and FDA tit.21 it.177.1550.不含塑化剂）
应用范围: FEP内胶硬壁软管（Teflon），适用于绝大多数化学产品（能IVG化学物质产品表找到）的输送，最高温度可达150℃，符合CIP标准
温度范围: -40℃至+150℃

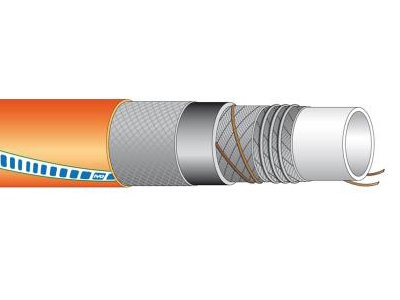

软管结构
内层: 清洁、光亮、特别光滑，食品级和耐高温的FEP材料（Teflon），具有化学耐受性，具体请参照IVG化学物质表，当输送温度高于50℃请与我方联系
加强层: 高强力合成线绳，内置螺旋钢丝骨架及防静电铜丝
外层: 橙色、光滑（表面布纹）、耐化学物质、耐磨、耐臭氧及抗老化的EPDM合成橡胶
商标: 橡胶管表面连续印刷白/蓝/绿条纹“IVG Chem...”，根据按压要求：EN 12115

Hose for chemicals and solvents, FEP tube
Standards: EN 12115:11. Tube USP Class VI and FDA tit.21 it.177.1550. Phthalates free.
Application: hardwall hose with FEP tube (polymer of tetrafluoroethylene and hexafluoropropylene), suitable to convey almost all chemical products, as found in the IVG chemical resistance chart. Designed to be sterilized at 150°C (+302°F) with standard CIP.
Temperature: -40°C(- 40°F) +150°C(+302°F) depending on medium.
Construction
Tube: FEP clear, specular, particularly smooth, food quality and with exceptional thermal quality. Chemical resistance according to IVG chemical resistance chart. For temperature exceeding 50°C contact IVG.
Reinforcement: high strength synthetic cord, steel helix wire and antistatic copper wire.
Cover: orange, smooth (wrapped finish), EPDM rubber, resistant to chemicals, abrasion, ozone and weathering.
Electrical Resistance: type M.
Branding: continuous white/blue/green stripe “IVG Chem (Family logo)...”. Embossed acc. to EN 12115.
